39 Segments Traction Motor XQ Series Commutator For Electric Car

I'm Online Chat Now

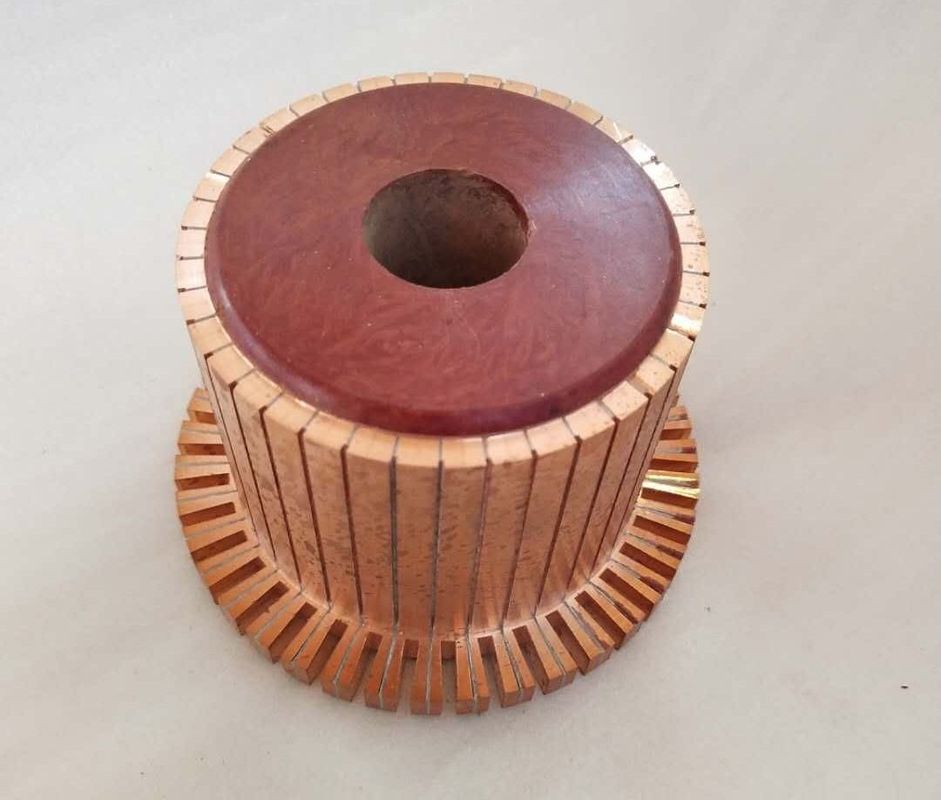

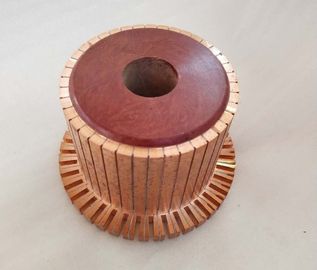

39 Segments Traction Motor XQ Series Commutator For Electric Car

39 Segments Traction Motor XQ Series Commutator For Electric Car
39 Segments Traction Motor XQ Series Commutator For Electric Car

Large Image :  39 Segments Traction Motor XQ Series Commutator For Electric Car

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 39 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 39 The Diameter Of Raised Platform D: 105
The Diameter Of Carbon Brush D1: 81 Shaft Hole D: 24.92
Copper Length L: 67 Total Length H: 73
High Light:

mechanical commutator

,

generator commutator



85 Segments Commutator For Electric Flatbed Truck With DC Traction Motor XQ-3000-3





Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 39
The diameter of raised platform D 105
The diameter of carbon brush D1 81
Shaft hole d 24.92
Copper length L 67
Total length H
73


39 Segments Traction Motor XQ Series Commutator For Electric Car 0

The company has been operating in the industry for more than 20 years, with professional technical strength, advanced production equipment,



perfect testing methods, and reliable product quality. At present, the company's existing industrial and mining traction motor ZQ series, DC motor



Z4 series, battery power supply DC traction motor XQ series, wind turbine Seven series of more than 300 specifications, such as slurry motor, rare earth permanent magnet servo motor , oil pump motor and starter motor , are widely used in industrial and mining electric locomotives, electric vehicles, electric sightseeing cars, electric forklifts, golf carts, electric sweepers, electric flatbeds. , aerial vehicles, wind power and other new energy industry, has been recognized by the market.   
In addition, according to the needs of customers, research and development can be customized to produce a variety of commutators in line with

customer needs(OEM/R&D).
