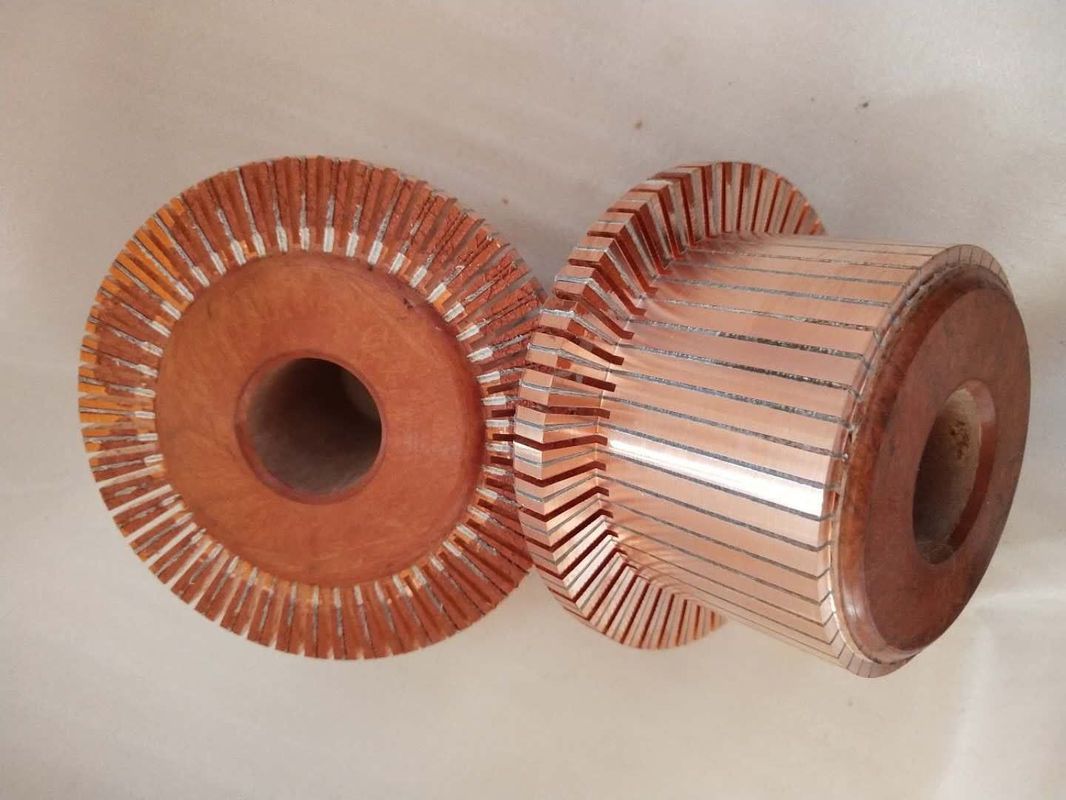

Simple Structure Industrial Commutator , 59 Segment DC Motor Commutator

Simple Structure Industrial Commutator , 59 Segment DC Motor Commutator
Simple Structure Industrial Commutator , 59 Segment DC Motor Commutator

Large Image :  Simple Structure Industrial Commutator , 59 Segment DC Motor Commutator

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 59 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 59 Number Of Segments: 59
Number Of Segments: 59 Number Of Segments: 59
The Diameter Of Raised Platform D: 108 The Diameter Of Raised Platform D: 108
The Diameter Of Raised Platform D: 108 The Diameter Of Raised Platform D: 108
The Diameter Of Carbon Brush D1: 86.5 The Diameter Of Carbon Brush D1: 86.5
The Diameter Of Carbon Brush D1: 86.5 The Diameter Of Carbon Brush D1: 86.5
Shaft Hole D: 30 Shaft Hole D: 30
Shaft Hole D: 30 Shaft Hole D: 30
Copper Length L: 58 Copper Length L: 58
Total Length H: 64 Total Length H: 64
Total Length H: 64 Total Length H: 64
High Light:

segment commutator

,

generator commutator



59 Segments Commutator For Electric Pallet Truck Oil Pump Motor DC Steering Motor XQD-8.2

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.





Number of segments 59
The diameter of raised platform D 108
The diameter of carbon brush D1 86.5
Shaft hole d 30
Copper length L 58
Total length H
64


Simple Structure Industrial Commutator , 59 Segment DC Motor Commutator 0



With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers’ confidence gradually. We directly and indirectly supply our products to more than 40 countries such as Germany, U.K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, Iran, India, Vietnam, etc. Among the customers, many of them are the world-renown companies.
