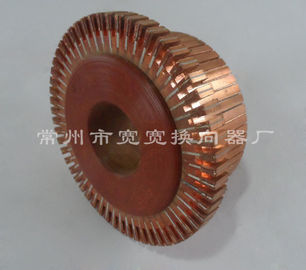

DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type

I'm Online Chat Now

DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type

DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type
DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type

Large Image :  DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 57 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: Mechanical Commutator The Diameter Of Raised Platform D: 105
The Diameter Of Carbon Brush D1: 81 Shaft Hole D: 24.92
Copper Length L: 40 Total Length H: 46
High Light:

segment commutator

,

generator commutator



DC Traction Motor XQ-3-6 57 Segments Commutator For Electric Car Traction Motor





Product Description:



Commutator series motor is a original parts which could keep the motor of DC permanent magnet moving on . it is a multitude of copper elements

insulated (spaced) among each other and reinforced with insulation compound .Each individual copper element is a bar joined on one end via

connection in form of hook or groove with the end of the armature winding coil. Electric current is transferred to commutator through two slip carbon  contacts – brushes exerting pressure onto the commutator surface (brush track) by force of a spring.



Technical Parameters :



1. Overspeed test : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 57
The diameter of raised platform D 105
The diameter of carbon brush D1 81
Shaft hole d 24.92
Copper length L 40
Total length H 46



DC Traction Motor XQ-3-6 57 Segment Commutator Simple Structure Linear Type 0
