Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 35 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 35 The Diameter Of Raised Platform D: 120
The Diameter Of Carbon Brush D1: 102 Shaft Hole D: 30
Copper Length L: 58 Total Length H: 68
High Light:

mechanical commutator

,

generator commutator

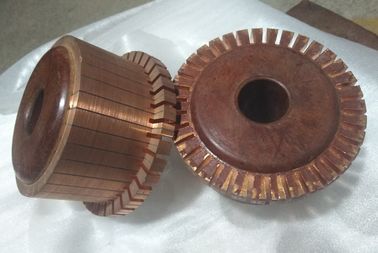

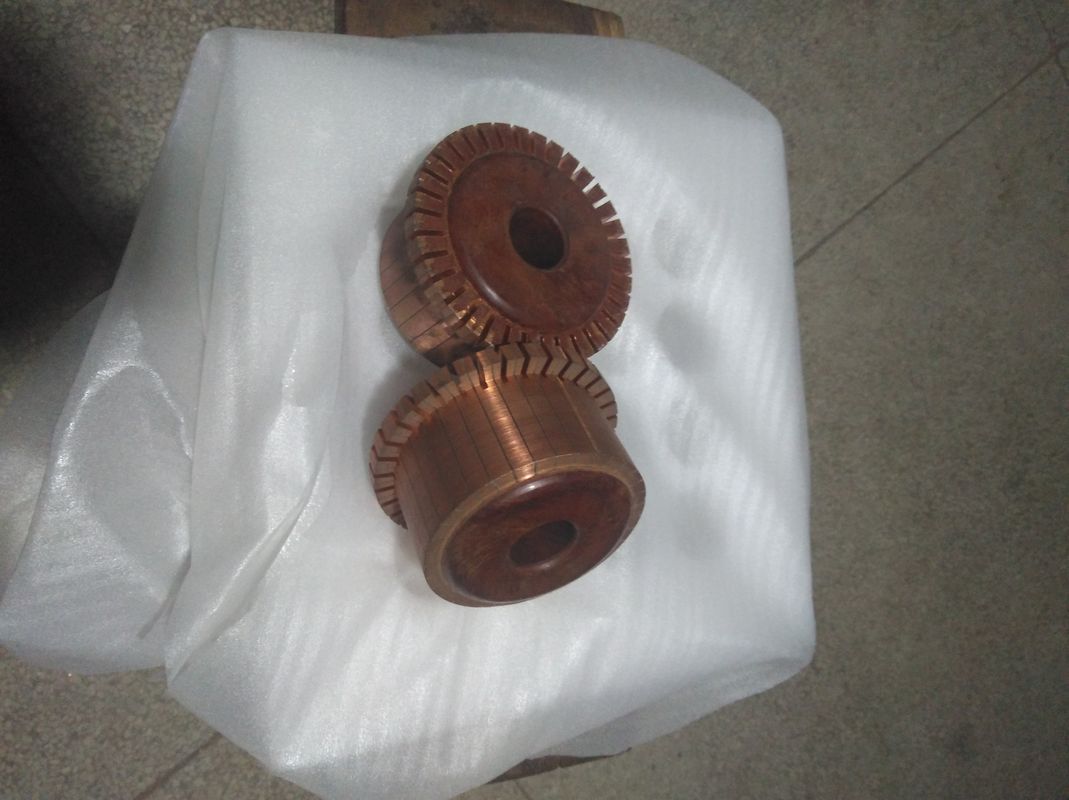

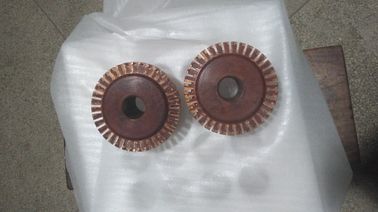

35 Segments Commutator For DC Traction Motor XQ-5-13 Traction Motor XQ Series Commutator



Product Description:



Commutator series motor is a original parts which could keep the motor of DC permanent magnet moving on . it is a multitude of copper elements

insulated (spaced) among each other and reinforced with insulation compound .Each individual copper element is a bar joined on one end via

connection in form of hook or groove with the end of the armature winding coil. Electric current is transferred to commutator through two slip carbon contacts – brushes exerting pressure onto the commutator surface (brush track) by force of a spring.



Our Service



1. OEM Manufacturing welcome: Product, Package...

2. Sample order

3. We will reply you for your inquiry in 24 hours.

4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.




Easy Install Traction Motor XQ Series Commutator 35 Segments ISO Approved 0
