Product Details:
Payment & Shipping Terms:
|
Name: | 75 Segments Commutator | Used: | DC Servo Motor SZ Series |
---|---|---|---|
Number Of Segments: | 75 Segments | The Diameter Of Raised Platform D: | 78 Mm |
The Diameter Of Carbon Brush D1: | 74 Mm | Total Length H: | 34 Mm |
High Light: | mechanical commutator,industrial commutator |

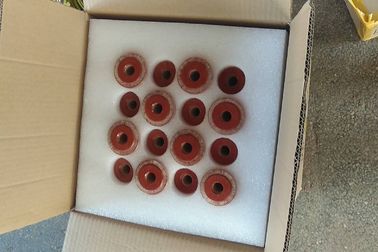

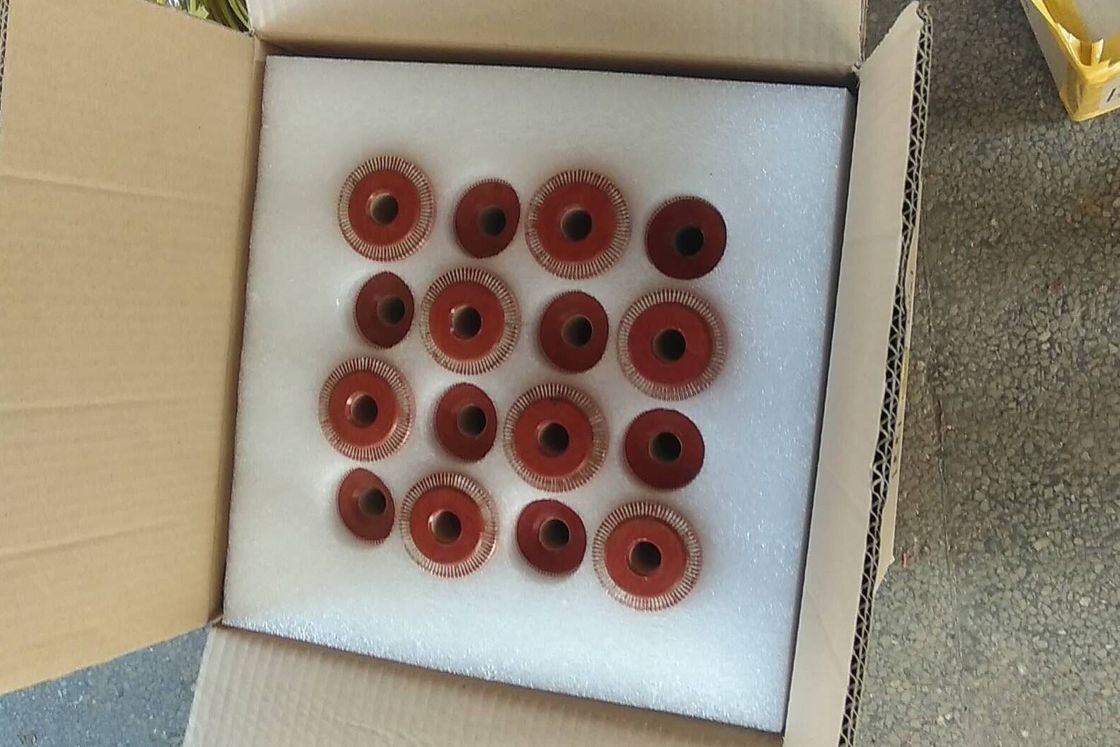

75 Segments Commutator Servo Motor SZ Series Commutator Suitable For Mechanical
Technical Parameters :
1. Spin testing: Sustained speed of 8000 r/min or more for 5min at 155±5°C.
2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V, The Withstand Voltage To Ground ≥ 5000V.
Number of segments | 75 mm |
The diameter of raised platform D | 78 mm |
The diameter of carbon brush D1 | 74 mm |
Shaft hole d | 19 mm |
Copper length L7 | 28 mm |
Total length H | 34 mm |
