Home ProductsDC Servo Motor SZ Series Commutator

42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment

I'm Online Chat Now

42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment

42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment
42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment 42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment

Large Image :  42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 42 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: Mechanical Commutator The Diameter Of Raised Platform D: 46.5 Mm
The Diameter Of Carbon Brush D1: 42.5 Mm Shaft Hole D: 18 Mm
Copper Length L: 27 Mm Total Length H: 30 Mm
High Light:

mechanical commutator

,

industrial commutator

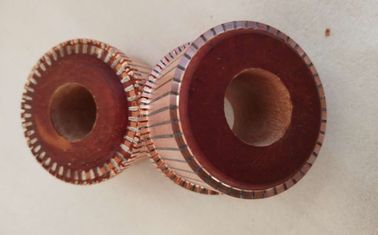

42 Segments Commutator DC Servo Motor SZ Series Commutator Suitable For Mechanical Equipment



Quality and delivery guarantee



1. Our factory manufacture commutators Years with mature technology and complete after-sales systems, and our commutators have passed the



CQC qualification.



2. We pay high attention on production detail and process to guarantee the commutators you receive are with perfect quality.



3. We make delivery in 3 days if in stock and if no stock we can finish production in 15-30 days.



4. Pls do not hesitate to contact us for more details. Vico commutators will be your best choice.



Technical Parameters :



1. Spin testing : sustained speed of 8000 r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 42 mm
The diameter of raised platform D 46.5 mm
The diameter of carbon brush D1 42.5 mm
Shaft hole d 18 mm
Copper length L7 27 mm
Total length H 30 mm



42 Segments DC Servo Motor SZ Series Commutator For Mechanical Equipment 0
