Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator

I'm Online Chat Now

Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator

Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator
Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator

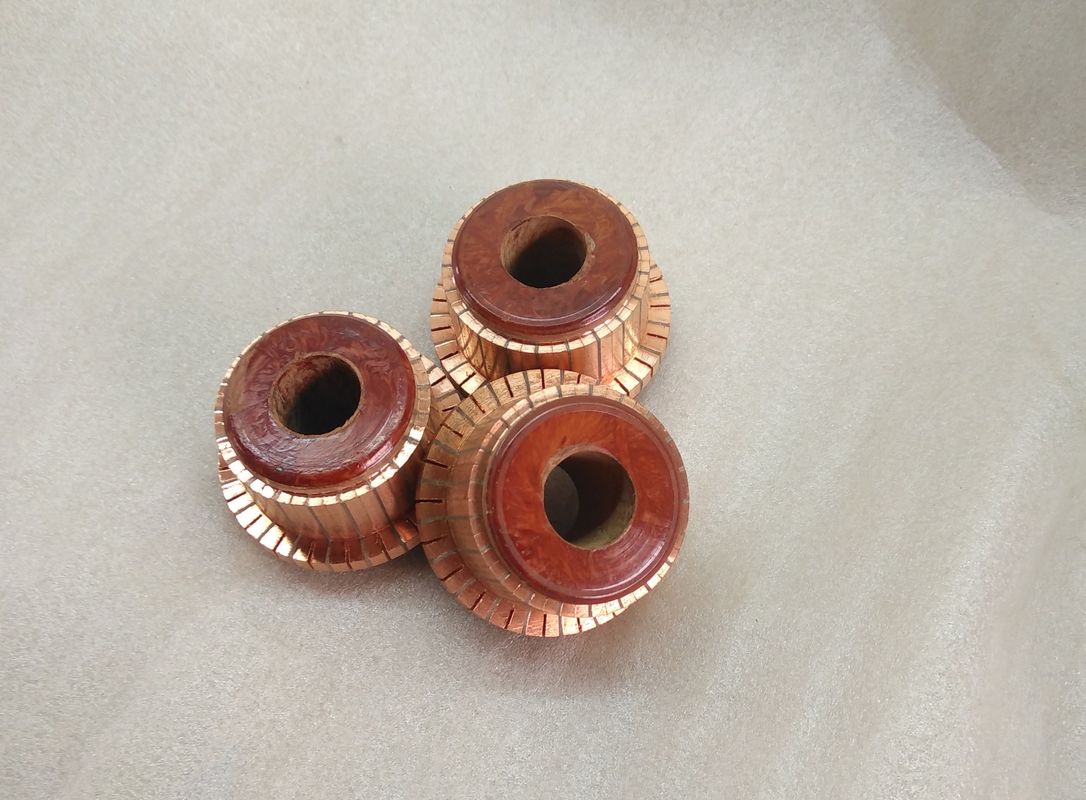

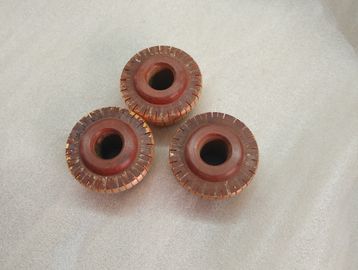

Large Image :  Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 51 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 51 Mm The Diameter Of Raised Platform D: 45 Mm
The Diameter Of Carbon Brush D1: 44 Mm Shaft Hole D: 12 Mm
Copper Length L: 19 Mm Total Length H: 24 Mm
High Light:

segment commutator

,

industrial commutator



DC Servo Motor SZ Series Commutator 51 Segments Commutator Suitable For Mechanical Equipment





Flexibility



We can design and manufacture commutators according to the drawings or samples you offer if have no existed mold, or we provide our drawing for your reference and modify together if you provide us detail measurements.



Technical Parameters :



1. Spin testing : sustained speed of 8000 r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 51 mm
The diameter of raised platform D 45 mm
The diameter of carbon brush D1 44 mm
Shaft hole d 12 mm
Copper length L7 19 mm
Total length H 24 mm



Customized DC Servo Motor SZ Series Commutator / 51 Segment Commutator 0
