Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments

I'm Online Chat Now

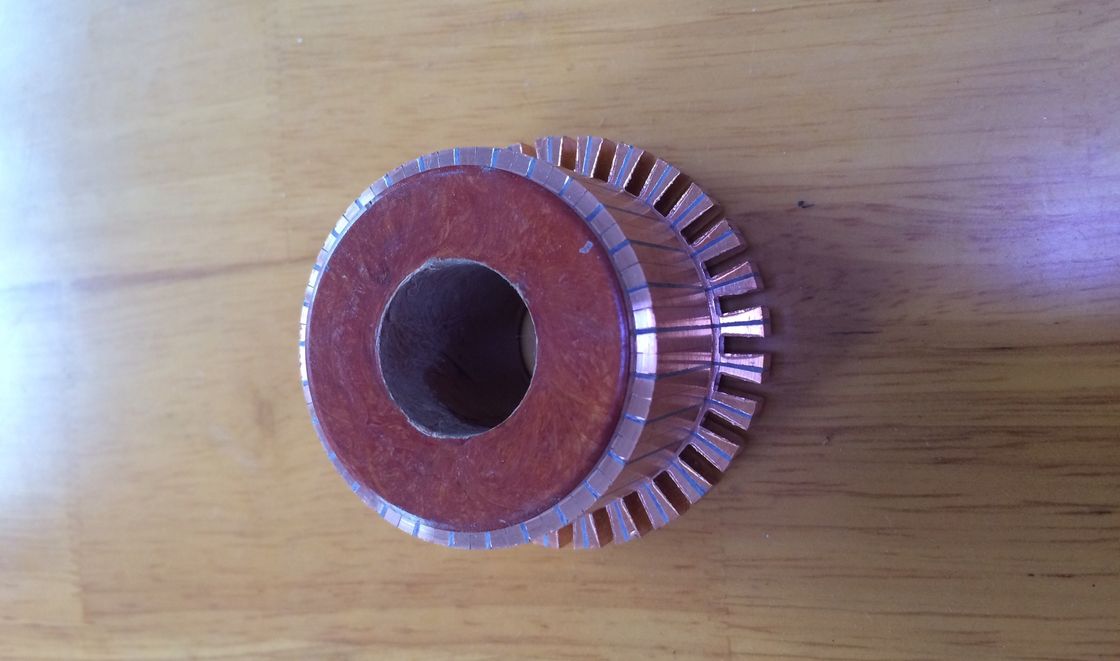

Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments

Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments
Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments

Large Image :  Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 27 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: DC Motor Commutator The Diameter Of Raised Platform D: 83
The Diameter Of Carbon Brush D1: 76 Shaft Hole D: 22
Copper Length L: 33 Total Length H: 37
High Light:

segment commutator

,

mechanical commutator



27 Segments Commutator For DC Permanent Magnet Motor ZTY Suitable For Mechanical Equipment




Competitive advantages


1. Sliver copper with high intension and wear resistance


2. Long duration time


3. Wide range of commutator


4. Wide application of commutator


5. Good quality


6. Produce commutator as per customer's drawing.



7. We could customize commutator for our customer.



Technical parameter:


Commutator Component: Copper/Mica/ Molding compound


Copper material: 0.03% or 0.08% sliver copper or customized


Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.


Application: apply to automotive industry, power tools, household appliances, and other motors


Commutator type: hook type, riser type, shell type or planar type


Package: Suitable for land and sea transportation


Technical Parameters :



1. Spin testing: sustained speed of 10000 r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 27
The diameter of raised platform D 83
The diameter of carbon brush D1 76
Shaft hole d 22
Copper length L7 33
Total length H 37



Customized Rare Earth Permanent Magnet Motor Commutator 27 Segments 0
