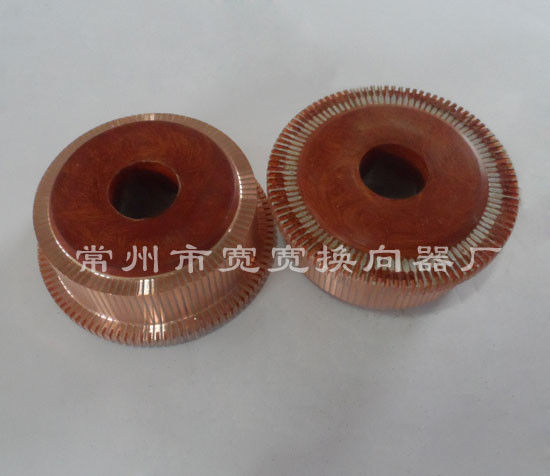

75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY

I'm Online Chat Now

75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY

75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY
75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY

Large Image :  75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 75 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 75 Mm The Diameter Of Raised Platform D: 90 Mm
The Diameter Of Carbon Brush D1: 75 Mm Shaft Hole D: 24 Mm
Copper Length L: 35 Mm Total Length H: 43 Mm
High Light:

segment commutator

,

industrial commutator



75 Segments Commutator For DC Permanent Magnet Motor ZTY





We provide many kinds of commutators for electromotor, electrical tools, medical instrument and appliance. We have all kind of commutators, such



as slotted type, tang type, planar type, shell type, They are applied widely to the generator of the electrical tools, automobile, motorcycle, home



electrical appliance etc. And we can produce also the commutators according to the requirement of the clients freely.





Process of production



1.The entire procedure of production is strictly controlled under management according the ISO/TS16949:2002 quality system.



2.We have perfect detecting equipment and reliable working condition tester.



3. We have the full capacility to supply the best commutator manufacturing with rich experience and skillful technique, like the good testing facilities.



We also provide qualified OEM services. Please send your drawings and designs. If you have any questions, please do not hesitate to contact us,



we'll reply you at the first time. We are looking forward to working with you.





Technical Parameters :



1. Spin testing: sustained speed of 10000 r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 75 mm
The diameter of raised platform D 90 mm
The diameter of carbon brush D1 75 mm
Shaft hole d 24 mm
Copper length L7 35 mm
Total length H 43 mm



75 Segments Industrial Commutator For DC Permanent Magnet Motor ZTY 0
