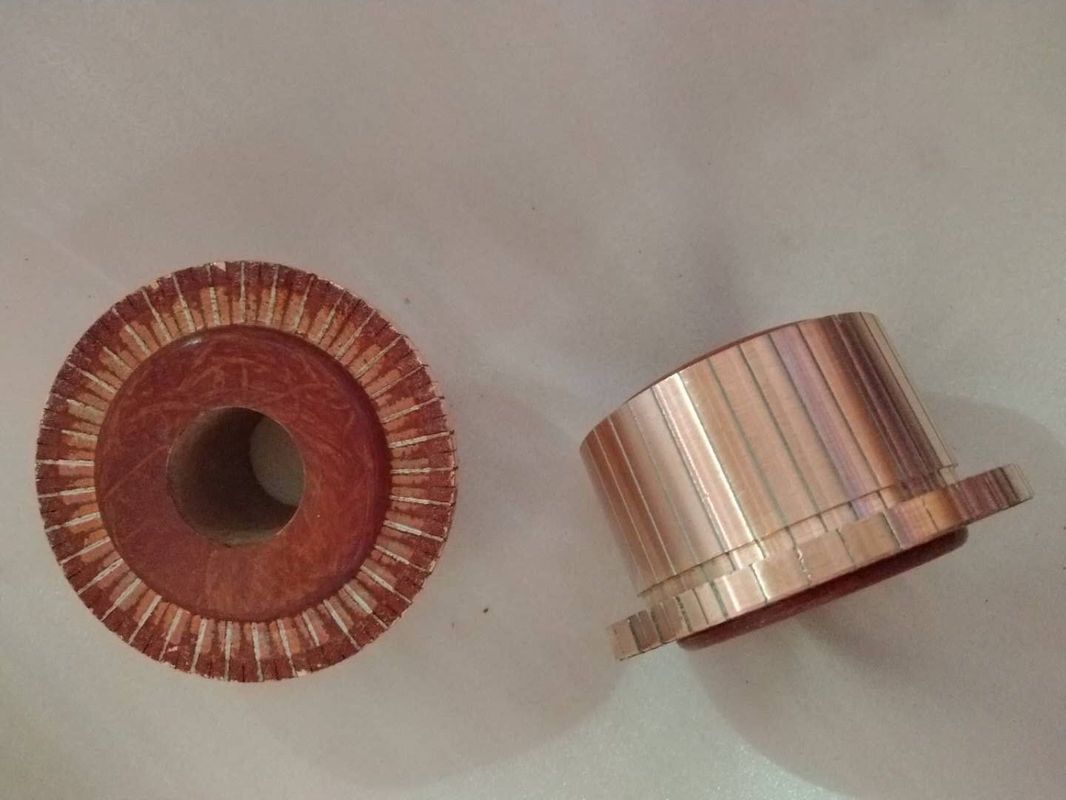

Customized DC Motor Z4 Series Commutator / 152 Segment Commutator

Customized DC Motor Z4 Series Commutator / 152 Segment Commutator
Customized DC Motor Z4 Series Commutator / 152 Segment Commutator

Large Image :  Customized DC Motor Z4 Series Commutator / 152 Segment Commutator

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 152 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: Copper Commutator The Diameter Of Raised Platform D: 205
The Diameter Of Carbon Brush D1: 171 Shaft Hole D: 70
Copper Length L: 87 Total Length H: 101
High Light:

segment commutator

,

mechanical commutator

152 Segments Commutator For DC Motor Z4-180 DC Motor Z4 Series Commutator For Machinery





Our Services



With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers’ confidence gradually. We directly and indirectly supply our products to more than 40 countries such as Germany, U.K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, Iran, India, Vietnam, etc. Among the customers, many of them are the world-renown companies.





Technical Parameters :



1. Overspeed test : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 152
The diameter of raised platform D 205
The diameter of carbon brush D1 171
Shaft hole d 70
Copper length L7 87
Total length H 101



Customized DC Motor Z4 Series Commutator / 152 Segment Commutator 0



Customized DC Motor Z4 Series Commutator / 152 Segment Commutator 1
