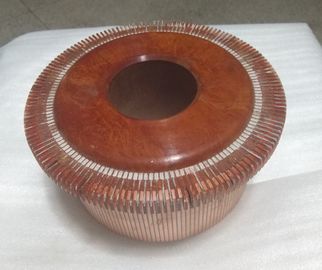

136 Segments DC Motor Z4 Series Commutator For DC Motor Z4-132-1

136 Segments DC Motor Z4 Series Commutator For DC Motor Z4-132-1
136 Segments DC Motor Z4 Series Commutator For DC Motor Z4-132-1

Large Image :  136 Segments DC Motor Z4 Series Commutator For DC Motor Z4-132-1

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 136 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: Mechanical Commutator The Diameter Of Raised Platform D: 155
The Diameter Of Carbon Brush D1: 127 Shaft Hole D: 48
Copper Length L: 45 Total Length H: 57
High Light:

copper commutator

,

mechanical commutator



136 Segments Commutator For Machinery For DC Motor Z4-132-1



Product Description:



Commutator series motor is a original parts which could keep the motor of DC permanent magnet moving on . it is a multitude of copper elements



insulated (spaced) among each other and reinforced with insulation compound .Each individual copper element is a bar joined on one end via



connection in form of hook or groove with the end of the armature winding coil. Electric current is transferred to commutator through two slip carbon contacts – brushes exerting pressure onto the commutator surface (brush track) by force of a spring.



Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 136
The diameter of raised platform D 155
The diameter of carbon brush D1 127
Shaft hole d 48
Copper length L7 45
Total length H 57
