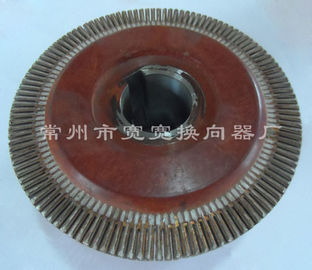

KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator

I'm Online Chat Now

KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator

KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator
KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator

Large Image :  KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 123 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 123 The Diameter Of Raised Platform D: 243
The Diameter Of Carbon Brush D1: 203 Shaft Hole D: 60
Copper Length L: 92 Total Length H: 120
High Light:

copper commutator

,

mechanical commutator



DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segments Commutator



Application:



For auxiliary motors



For fuel pump motors



For starter motors



For E-motors/Alternators*



For household appliance motors



For industrial motors



For power tool motors



Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.





Number of segments 123
The diameter of raised platform D 243
The diameter of carbon brush D1 203
Shaft hole d 760
Copper length L7 92
Total length H 120



KUANKUAN DC Motor ZQ Series Commutator DC Traction Motor ZQ-30 123 Segment Commutator 0
