Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 185 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Name: DC Motor Commutator The Diameter Of Raised Platform D: 317
The Diameter Of Carbon Brush D1: 296 Shaft Hole D: 70
Copper Length L: 56 Total Length H: 125
High Light:

copper commutator

,

mechanical commutator

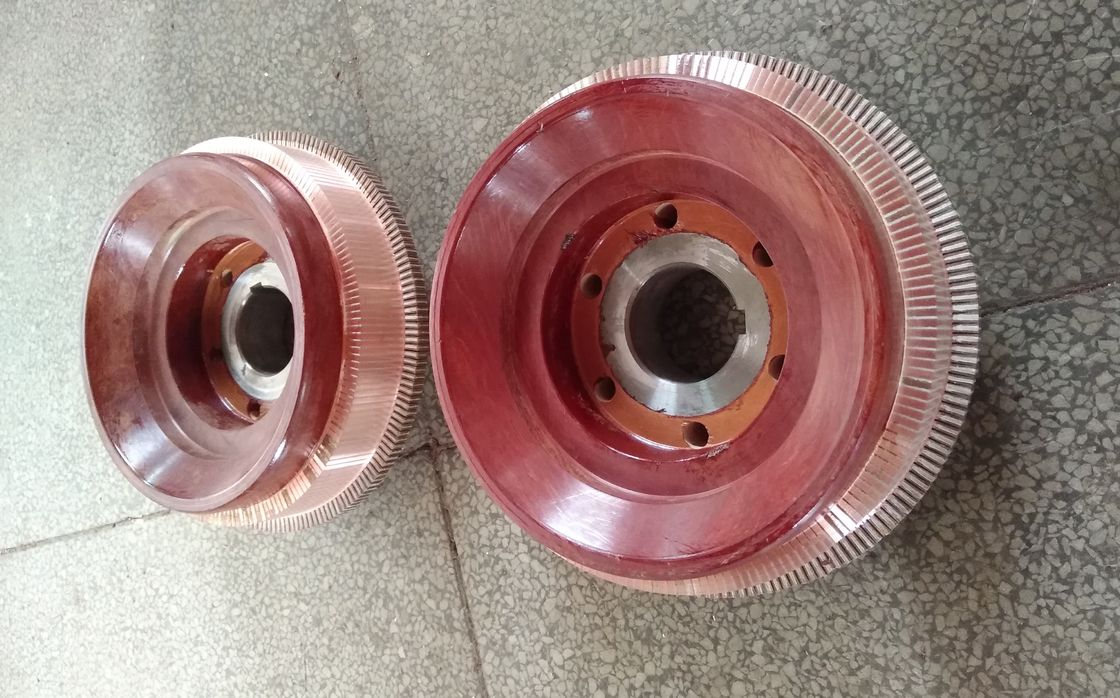

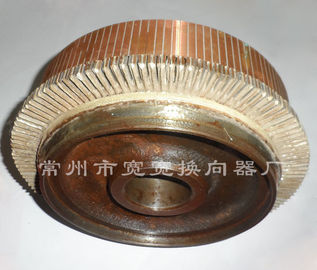

DC Traction Motor ZQ-24 185 Segments Commutator DC motor ZQ Series Commutator



Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.



Number of segments 185
The diameter of raised platform D 317
The diameter of carbon brush D1 296
Shaft hole d 70
Copper length L7 56
Total length H 125
