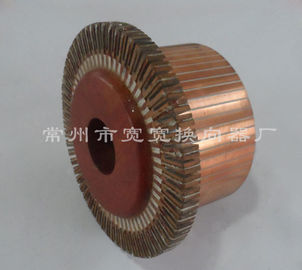

DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car

I'm Online Chat Now

DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car

DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car
DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car

Large Image :  DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Certification: CE / ISO
Model Number: 69 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: negotiation
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Number Of Segments: 69 The Diameter Of Raised Platform D: 150
The Diameter Of Carbon Brush D1: 118 Shaft Hole D: 39
Copper Length L: 78 Total Length H: 93
High Light:

mechanical commutator

,

segment commutator



DC Traction Motor ZQ-4 69 Segments Commutator For Industrial And Mining Traction Motor Car





Quality and delivery guarantee:



1. Our factory manufacture commutators Years with mature technology and complete after-sales systems, and our commutators have passed the CQC qualification.



2. We pay high attention on production detail and process to guarantee the commutators you receive are with perfect quality.



3. We make delivery in 3 days if in stock and if no stock we can finish production in 15-30 days.



4. Pls do not hesitate to contact us for more details. Vico commutators will be your best choice.





Application:





For auto starter motors



For power tool motors



For industrial motors



For household appliance motors



For auxiliary motors



For E-motors/Alternators





Technical Parameters :



1. Spin testing : sustained speed of 4000r/min or more for 5min at 155±5°C.



2. Withstand voltage test : Inter-chip Withstand Voltage ≥ 400V,  The Withstand Voltage To Ground  ≥ 5000V.





Number of segments 69
The diameter of raised platform D 150
The diameter of carbon brush D1 118
Shaft hole d 39
Copper length L 78
Total length H 93
