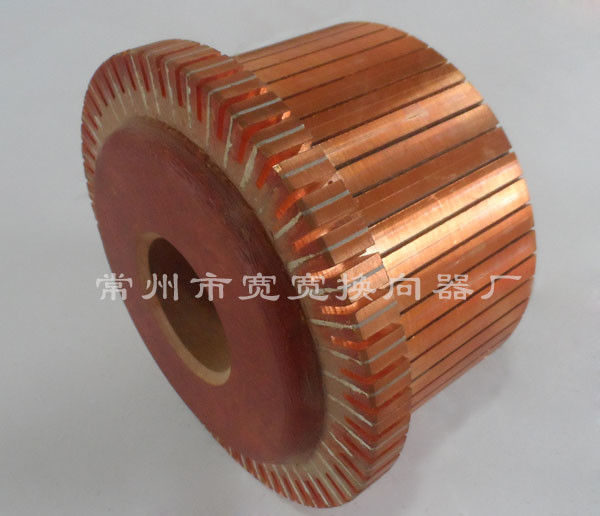

Durable DC Motor Commutator / Easy Install 43 Segment Commutator

I'm Online Chat Now

Durable DC Motor Commutator / Easy Install 43 Segment Commutator

Durable DC Motor Commutator / Easy Install 43 Segment Commutator
Durable DC Motor Commutator / Easy Install 43 Segment Commutator

Large Image :  Durable DC Motor Commutator / Easy Install 43 Segment Commutator

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Model Number: XQ-5 43 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: Contact US
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
Material.3: Phenolic Glass Filament Compacting Material Model: 43 Sices
The Product Name: DC Motor Commutator Apply To The: XQ-5
Ray Material: Electrolytic Copper Material.2: Mica Sheet
High Light:

mechanical commutator

,

dc commutator

DC Traction Motor XQ-5 Commutator 43 Segments



Some Motor Commutator Specification:



Segment Rised OD OD ID Length of bar Total height
43 144 125.3 35 76 92
43 88 70.5 26 45 52
93 164 136 41 78 89
93 164 136 41 52 60
81 136 102 42 37 46
81 132 98 42 41 48
21 58 38 14 28 30
21 40 32.5 13 19 24.5
45 66 55.4 20.6 36 42.3
45 52 40 17 25 27
39 157 132.3 40 72 88
35 118 100.3 30 76 88
73 117 100 24 57 67
41 90 70.5 24.98 39 39
42 73 55 18 44 47
59 90 76.5 28.6 39 49
36 52 44 18 30 33
111 182 136 52 72 84
105 180 136 52 72 84
100 92 80 25 30 35
48 43.2 39.2 12 24 27
123 240 200 60 92 110
70*48
61 151 115 37 72 87
96 103.5 103 28 50 60



Why Choose Kuankuan Commutator:



1. We manufacture all kinds of commutators to meet different customers' requirements.



1. Commutator for power tools armature

2. Commutator for household appliances

3. Commutator for starter motor armature

4. Commutator for industrial motors



2. Flexibility

We can design and manufacture commutators according to the drawings or samples you offer if have no existed mold, or we provide our drawing for your reference and modify together if you provide us detail measurements.



3. Quality and delivery guarantee



1. Our factory manufacture commutators  with mature technology and complete after-sales systems, and our commutators have passed the CQC qualification.

2. We pay high attention on production detail and process to guarantee the commutators you receive are with perfect quality.

3. We make delivery in 3 days if in stock and if no stock we can finish production in 15-30 days.

4. Pls do not hesitate to contact us for more details. Vico commutators will be your best choice.
