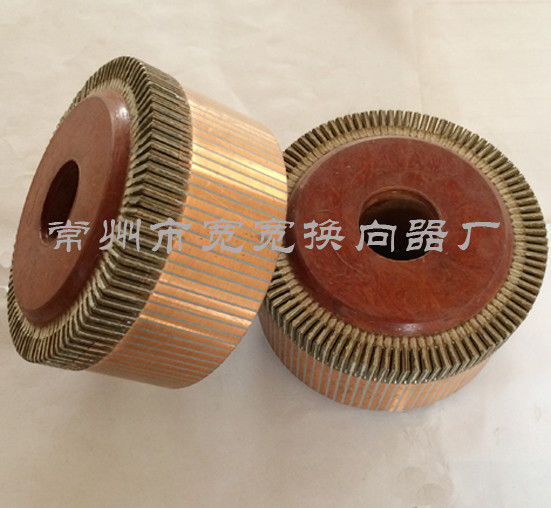

93 Segments DC Motor Commutator For Household Appliance Motors

I'm Online Chat Now

93 Segments DC Motor Commutator For Household Appliance Motors

93 Segments DC Motor Commutator For Household Appliance Motors
93 Segments DC Motor Commutator For Household Appliance Motors 93 Segments DC Motor Commutator For Household Appliance Motors

Large Image :  93 Segments DC Motor Commutator For Household Appliance Motors

Product Details:
Place of Origin: CHINA
Brand Name: KUANKUAN
Model Number: ZQ-1.9 93 Segments
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: Contact US
Packaging Details: Customize The Carton Or Wooden Case According To The Product Size
Delivery Time: Two Weeks
Payment Terms: T/T
Supply Ability: Meet Any Order Requirements
Detailed Product Description
The Product Name: DC Motor Commutator Ray Material: Electrolytic Copper
Material.2: Mica Sheet Material.3: Phenolic Glass Filament Compacting Material
Model: 93 Segments Apply To The: ZQ-1.9
High Light:

mechanical commutator

,

starter motor commutator

        93 Segments DC Traction Motor ZQ-1.9 Commutator For Household Appliance Motors ​





Product Description:



Commutator series motor is a original parts which could keep the motor of DC permanent magnet moving on . it is a multitude of copper elements



insulated (spaced) among each other and reinforced with insulation compound .Each individual copper element is a bar joined on one end via



connection in form of hook or groove with the end of the armature winding coil. Electric current is transferred to commutator through two slip carbon  contacts – brushes exerting pressure onto the commutator surface (brush track) by force of a spring.



Product advantage:



1) OEM or ODM



2) Resin from Japan



3) overall structure



4) silver copper with high intension and wear resistance



5) high speed operating performance



Main Features



1) Simple structure in linear type ,easy in installation and maintation.



2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



3) High pressure double crank to control the die opening and closing.



4) Running in a high automatization and intellectualization,no pollution



5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
